Product NO. :

MS-SLH50W-F01

MS-SLH100W-F02

MS-SLH150W-F03

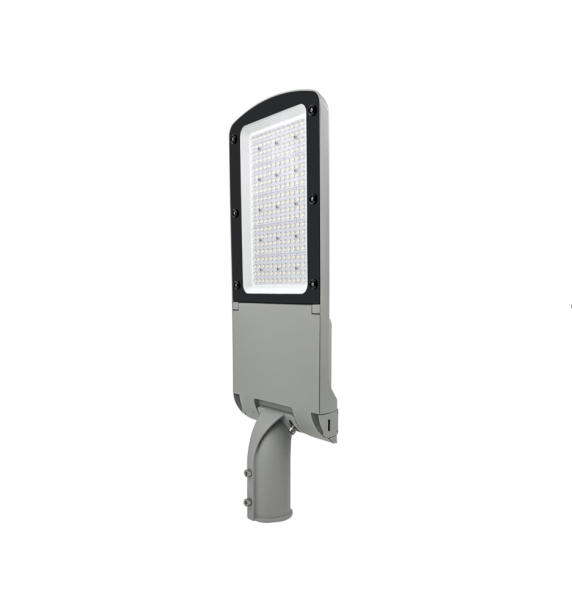

high lumens led street light 50w to150w ( 160lm/w)

Mosun F Series Led Street Light Features:

Power: 50W/100W/150W/
Luminous flux: 8000-8500LM / 16000-17000LM/24000-25500LM
IP Grade: Waterproof IP65
Material: PC & Aluminum alloy
Luminous Efficiency: 160lm/w ( Lumileds Luxeon 5050 LEDs)
Beam Angle: 80×140°
Input Voltage: 100-277VAC 50/60Hz
CRI: >75 RA
Color Temperature: 2800-6500K Cool White/White/Warm White
Light Source: Lumileds LUXEON 5050 LEDs
Life Span: 50,000 hours
Certificate: CE,ROHS,FCC,TUV
Warranty: 5 years

LED Street Light F

Technology Data

Model	Power	Luminous efficiency	CCT
MS-SLH50W-F01	50W	160lm/w	2700-6500K
MS-SLH100W-F02	100W	160lm/w	2700-6500K
MS-SLH150W-F03	150W	160lm/w	2700-6500K

Application Places

Professional outdoor roading lighting.

Package

50w	100w	150w
1PC/Carton 720295180mm 7.2KGS	1PC/Carton 810340190mm 9.3KGS	1PC/Carton 850390190mm 11.8KGS

Attention

Be sure disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
The input product line, brown is “L”, blue is “N”, yellow-green is GND.
Be sure wiring is closed and prevent leakage when installing.
The lamp can not be used in violation of any fire regulations.

Download Spec

High lumens 160lm/w Led Street Light
