H series LED Flood Light  Product NO. :

MS-YFL50W-H01                          MS-YFL200W-H04

MS-YFL100W-H02                        MS-YFL300W-H05

MS-YFL150W-H03                        MS-YFL500W-H06

Premium Led Flood Light – Mosun H series

Premium LED Flood Light – Mosun H series

Features:

  • High lumen: 130-140lm/w
  • Chip: Philips 3030 LED
  • IP rating: IP66
  • Body temperature: less than 65 degrees
  • Energy saving system, saving 80% of energy
  • Ambient temperature:-35°C-  55° degree
  • Good Color Rendering
  • Warm and cold color temperatures are available
  • Good heat sink design
  • CE RoHS Approved
  • Beam Angle: 30/60/90/120°/T2/T3/T3
  • Warranty: 5 years

Applications:

For outdoor sports fields, squares, parks, streets, parking lots, etc

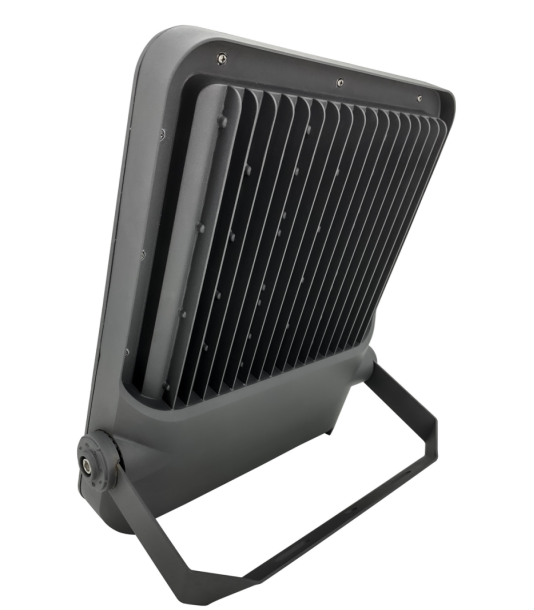

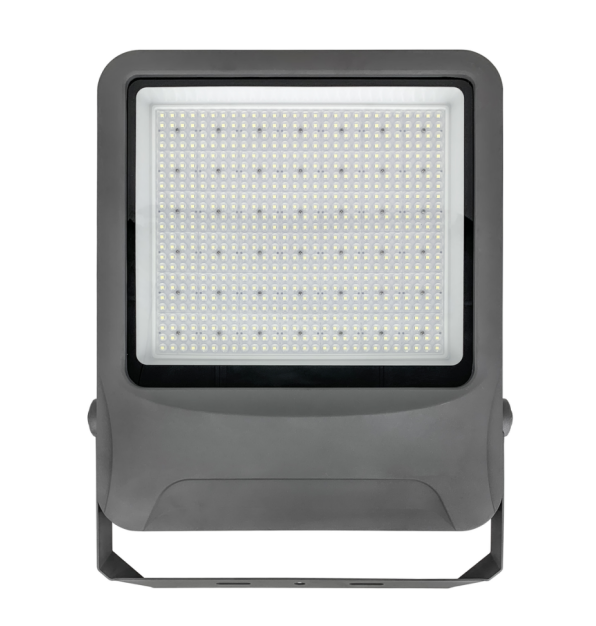

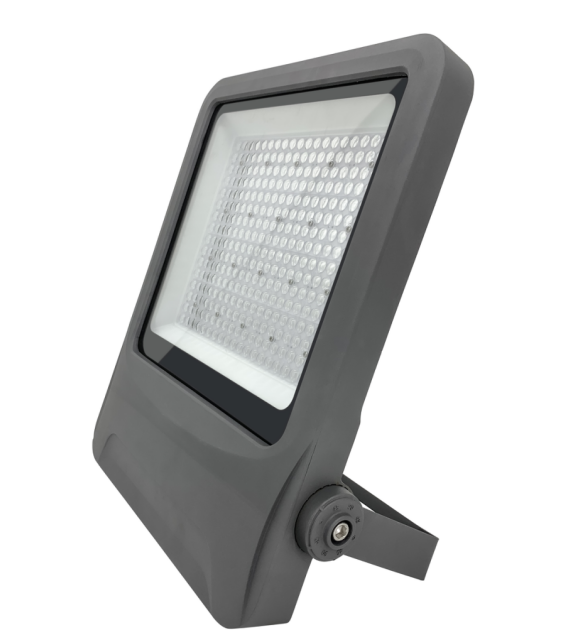

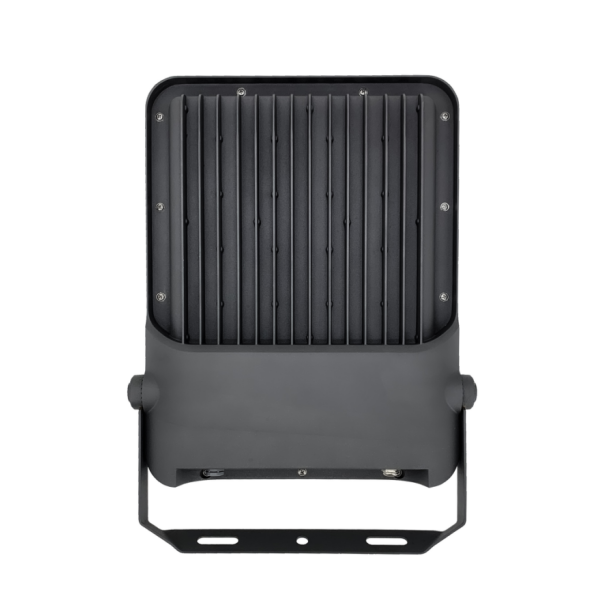

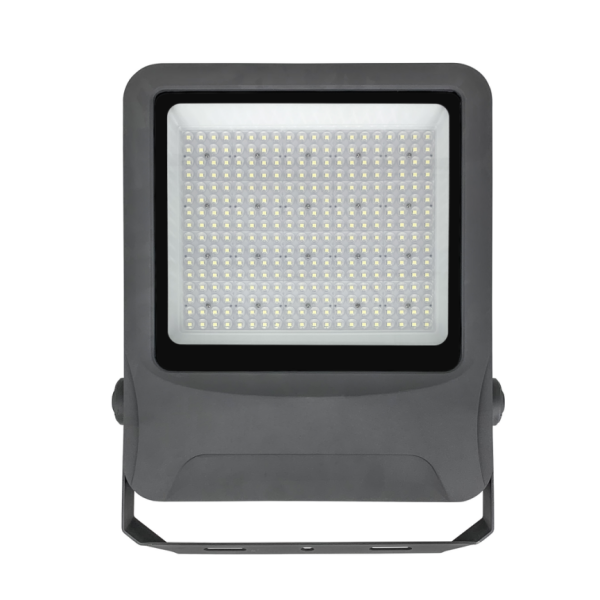

The Product Details

Technology Data
Model： MS-YFL50W-H01 MS-YFL100W-H02 MS-YFL150W-H03 MS-YFL200W-H04 MS-YFL300W-H05 MS-YFL500W-H06
Wattage: 40-60W 80-100W 120-150W 180-200W 250-300W 400-500W
Led Source: Philips-3030LEDs Philips-3030LEDs Philips-3030LEDs Philips-3030LEDs Philips-3030LEDs Philips-3030LEDs
Driver Brand Meanwell/Philips/Inventronics/Sosen/Mosun Meanwell/Philips/Inventronics/Sosen/Mosun Meanwell/Philips/Inventronics/Sosen/Mosun Meanwell/Philips/Inventronics/Sosen/Mosun Meanwell/Philips/Inventronics/Sosen/Mosun Meanwell/Philips/Inventronics/Sosen/Mosun
Input： AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ
Body Color Black Black Black Black Black Black
Optical Lenses 30/60/90/120°/T2 / T3/T4 30/60/90/120°/T2 / T3/T4 30/60/90/120°/T2 / T3/T4 30/60/90/120°/T2 / T3/T4 30/60/90/120°/T2 / T3/T4 30/60/90/120°/T2 / T3/T4
Lumen： 6500-7000LM 13000-14000LM 19500-21000LM 26000-28000LM 39000-42000lm 52000-56000lm
Power Factor: >0.95 >0.95 >0.95 >0.95 >0.95 >0.95
CCT: 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K
CRI: ≥70Ra ≥70Ra ≥70Ra ≥70Ra ≥70Ra ≥70Ra
IP Rating: IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08
Material Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate
Net Weight: 1.27kgs 2.19kgs 3.02kgs 4.11kgs 5.78kgs 7.97kgs

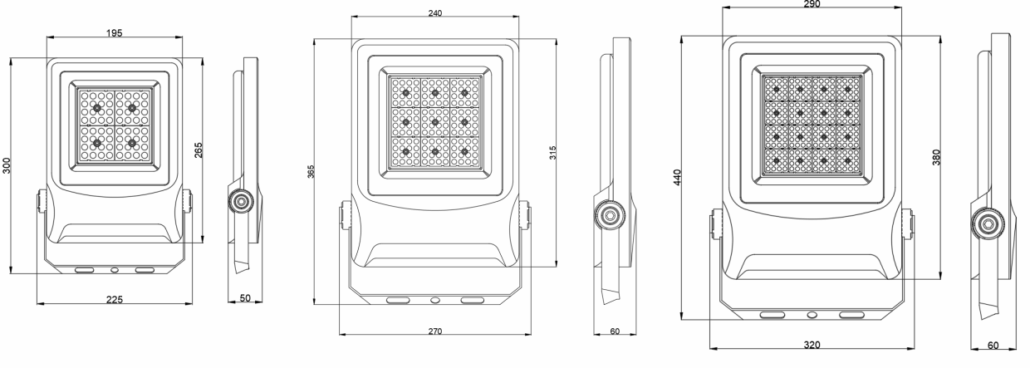

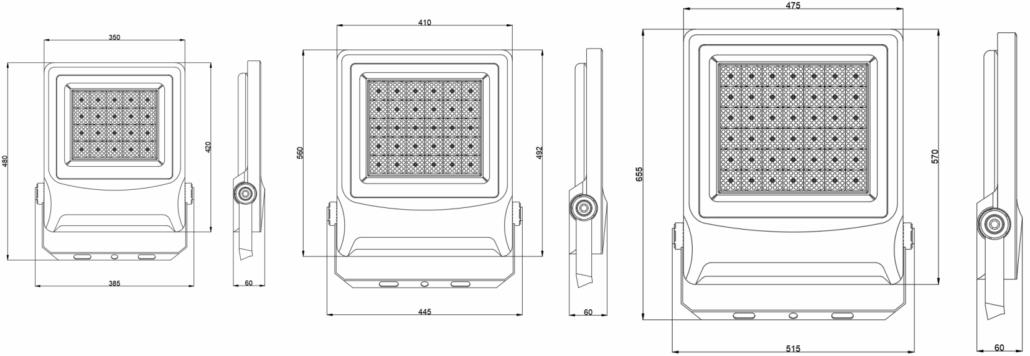

Dimension

Application Places

led floodlight outdoor lighting project

Package
Model： MS-YFL50W-H01 MS-YFL100W-H02 MS-YFL150W-H03 MS-YFL200W-H04 MS-YFL300W-H05 MS-YFL500W-H06
Cartons(mm) 315*285*470mm 395*290*90MM 470*350*100MM 510*420*100MM 590*480*100MM 690*550*100MM
GW 13.7kgs 2.59kgs 3.55kgs 4.9kgs 6.8kgs 8.8kgs
CTN/PCS 10 1 1 1 1 1
Attention
  • Be sure to disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N”, yellow-green is GND.
  • Be sure wiring is closed and prevent leakage when installing.
  • The lamp cannot be used in violation of any fire regulations.
    fire-regulations
  • Installation and schematic.
Download Spec

https://ledmosun.com/wp-content/uploads/2025/10/H-Series-ultra-slim-LED-flood-light.pdf
