LED Street Light -SDL Product NO. :

MS-LSH50W-SDL01

MS-LSH100W-SDL02

MS-LSH150W-SDL03

MS-LSH200W-SDL04

LED Street Light-SDL

SDL LED Street Light main parameters:

Features:

High-quality Lumiled Luxeon Chips 3030 &5050 Options,
Meanwell Driver /Mosun driver or other brand driver
Die casting housing, high transparent tempered glass
100,000 hours lifespan
Input voltage: 100-277Vac; 50/60Hz
Protection: IP66, IK08
10kV SPD, 0-10V, DAL, Dimming Driver, Electronic Switch, 5~7 years warranty
CE/RoHS/ErP Certificates
Warranty: 5 years

Applications:

For street lights, parks, campus, highway, pavements, parking lot, etc

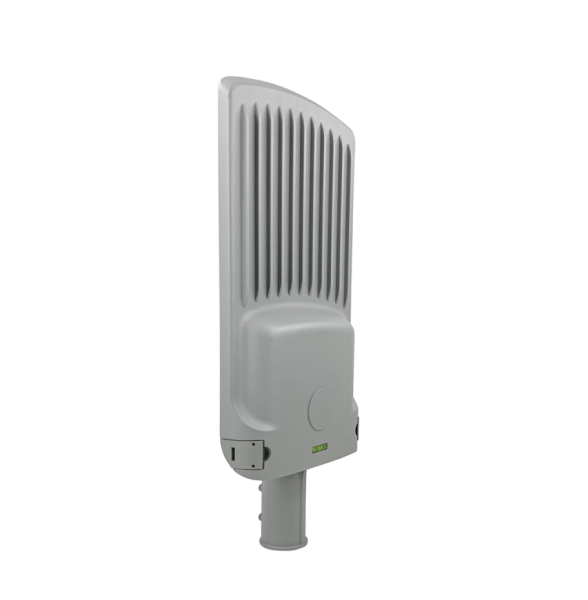

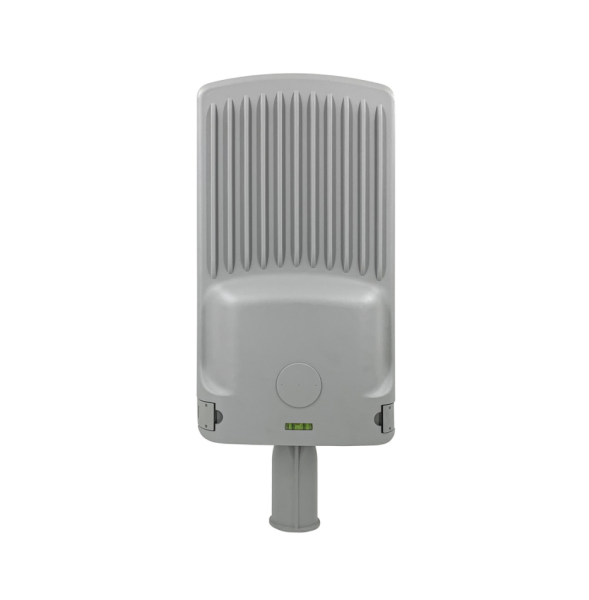

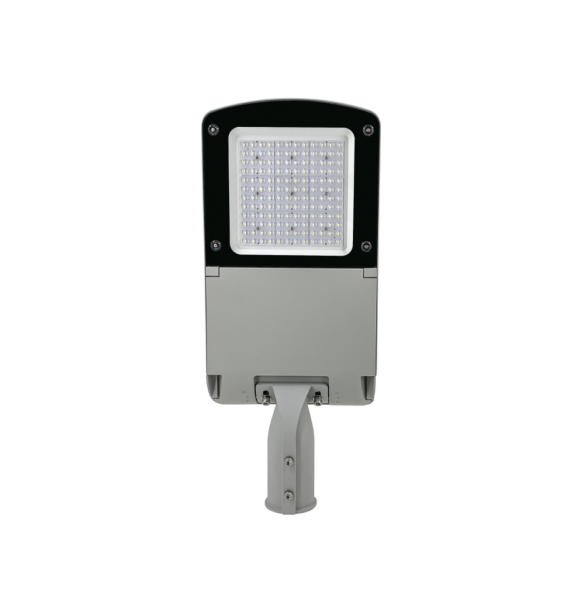

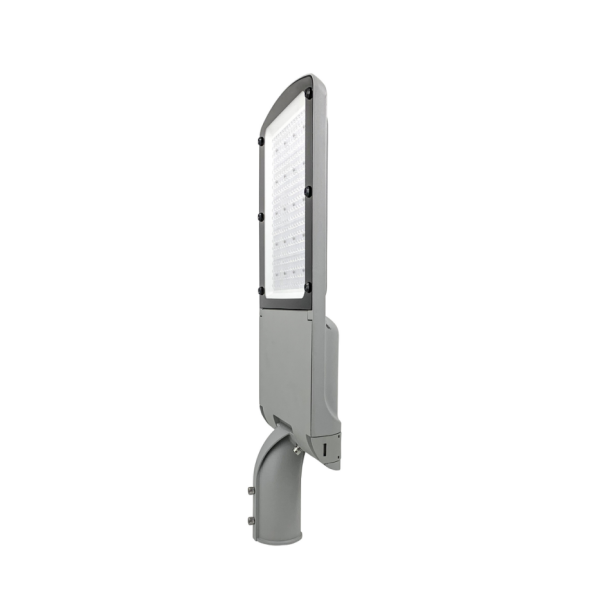

The Product Details

Technology Data

Model：	MS-LSH50W-SDL01	MS-LSH100W-SDL02	MS-LSH150W-SDL03	MS-LSH200W-SDL04
Led Source:	Lumileds-3030/5050LED	Lumileds-3030/5050LED	Lumileds-3030/5050LED	Lumileds-3030/5050LED
Led Qnty:	96/36pcs	144/54pcs	240/90pcs	320/120pcs
Working voltage：	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Driver：	Meanwell/Invenrtonics/Mosun	Meanwell/Invenrtonics/Mosun	Meanwell/Invenrtonics/Mosun	Meanwell/Invenrtonics/Mosun
Beam angle:	60°/90°/120°/T2 /T3	60°/90°/120°/T2 /T3	60°/90°/120°/T2 /T3	60°/90°/120°/T2 /T3
Lumen efficiency：	130/160lm/w	130/160lm/w	130/160lm/w	130/160lm/w
Power Factor:	>0.95	>0.95	>0.95	>0.95
Correlated Color Temperature：	3000K-6500K	3000K-6500K	3000K-6500K	3000K-6500K
Color rendering index：	≥70	≥70	≥70	≥70
IP Rating:	IP66	IP66	IP66	IP66
Material：	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Weight:	2.9kgs	3.4kgs	5.2kgs	7.2kgs
Warranty：	5 years	5 years	5 years	5 years

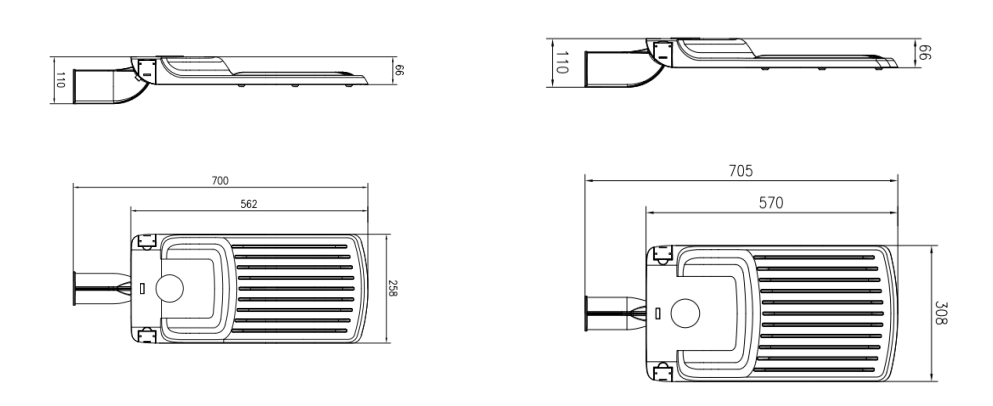

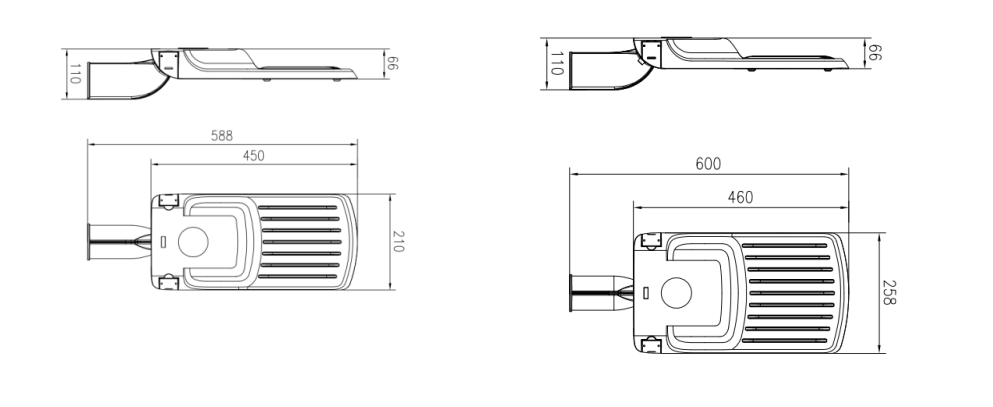

Dimension

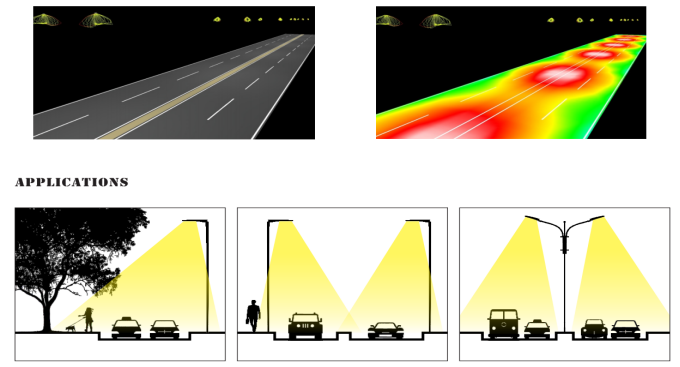

Application Places

Attention

Be sure to disconnect power before installing, don’t construction with electricity.
Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
Input product line, brown is “L”, blue is “N”, yellow-green is GND.
Be sure wiring is closed and prevent leakage when installing.
The lamp cannot be used in violation of any fire regulations.

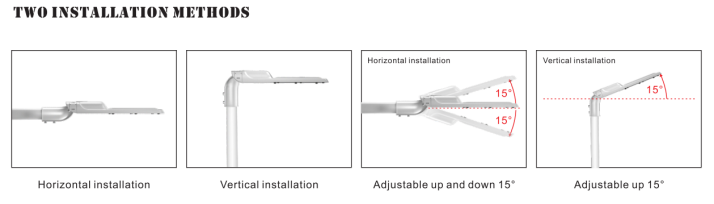

Installation and schematic.

Download Spec

https://ledmosun.com/wp-content/uploads/2025/10/Mosun-SDL-series-street-light-product-brochure-New-version.pdf
