LED Tunnel Light Product NO. :

MS-SL250W-FA01                        MS-SL1250W-FA05

MS-SL500W-FA02                        MS-SL1500W-FA06

MS-SL750W-FA03                        MS-SL2000W-FA07

MS-SL1000W-FA04                      MS-SL2500W-FA08

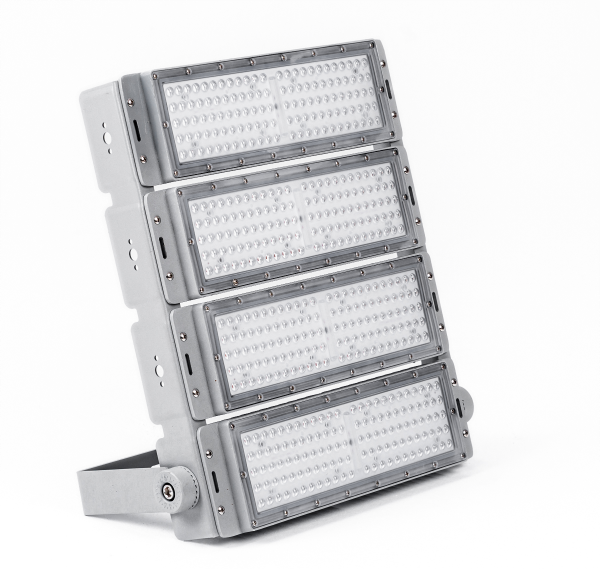

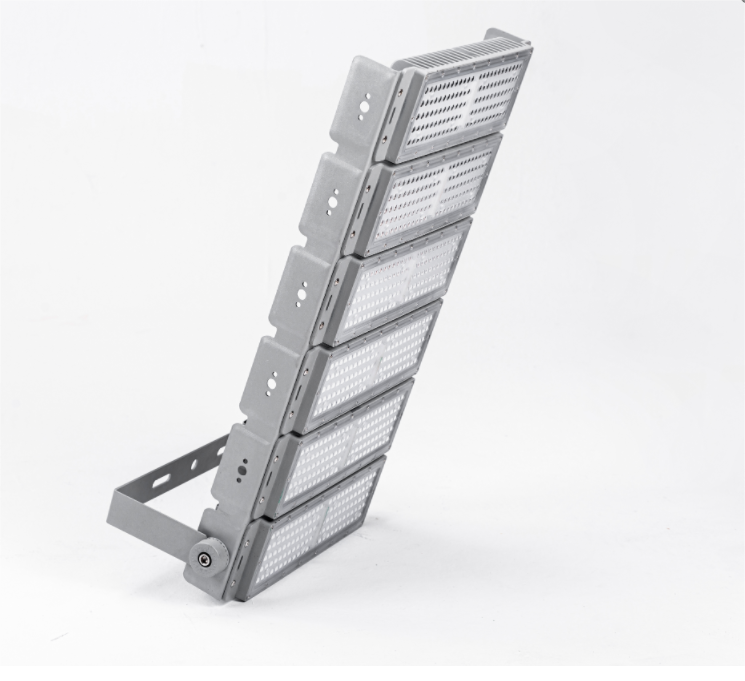

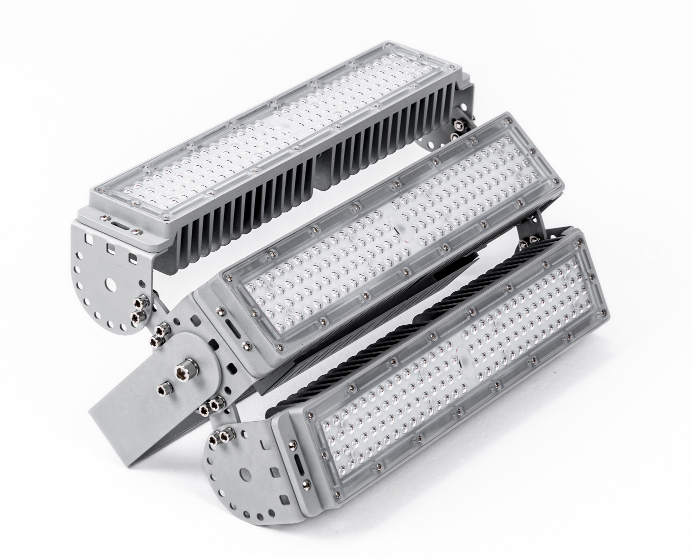

LED Tunnel Light-FA series

LED Tunnel light – FA series

Features:

  • Power option: 200-250W/400-450W/600-750W/800-1000W/1000-1250W/1600-2000W/2000-2500W
  • Die-cast aluminum
  • LED Chip: Philips 3030 LED
  • High lumen: 150lm/w
  • LED Driver: Inventronics/Meanwell/Mosun
  • Color Temperature:3000K-6500K
  • Beam Angle: 30/60/90/140*70°
  • Protection rating: IP66&IK10
  • CRI:>70/80Ra
  • CE RoHS Approved
  • Warranty: 5 years

Applications:

For outdoor sports fields, squares, parks, streets, parking lots, etc

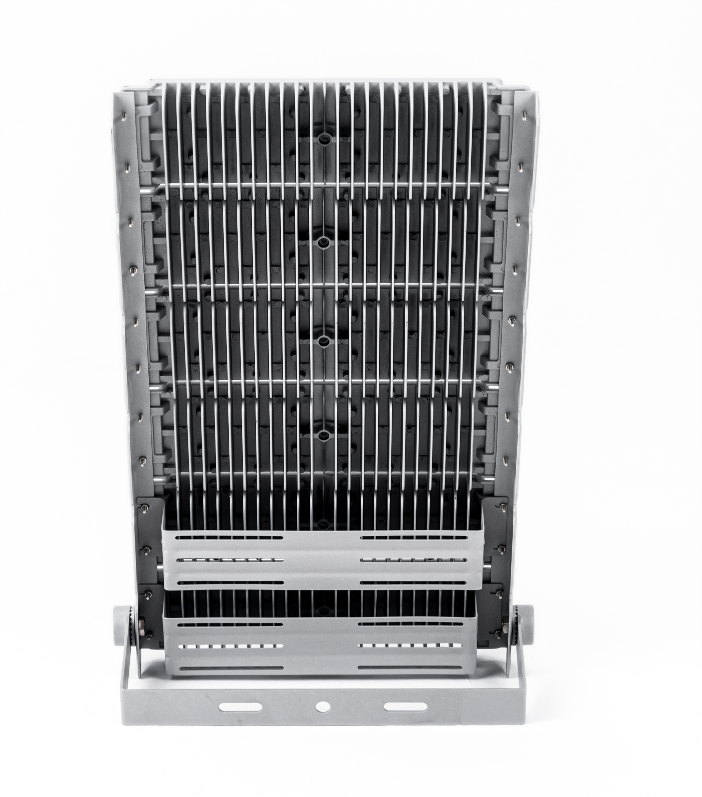

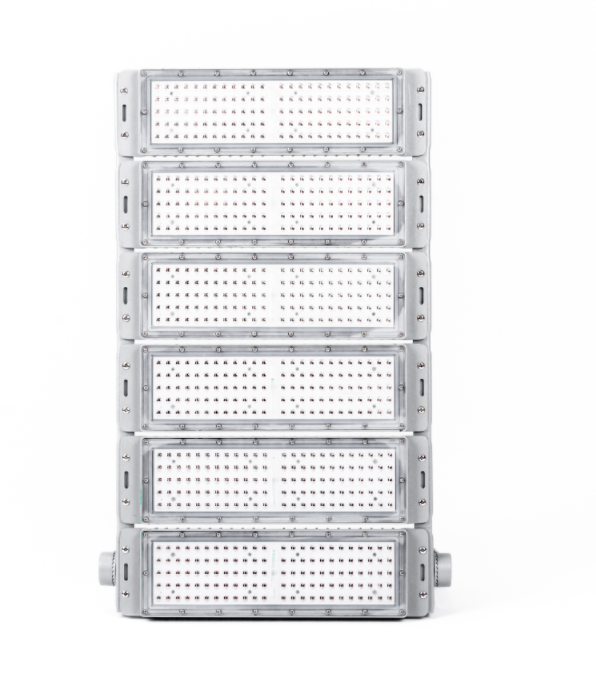

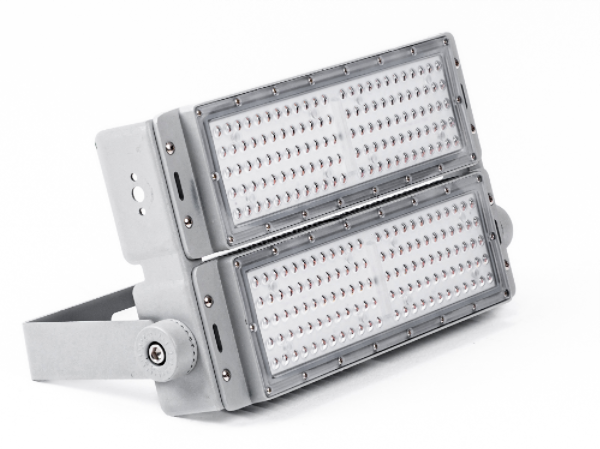

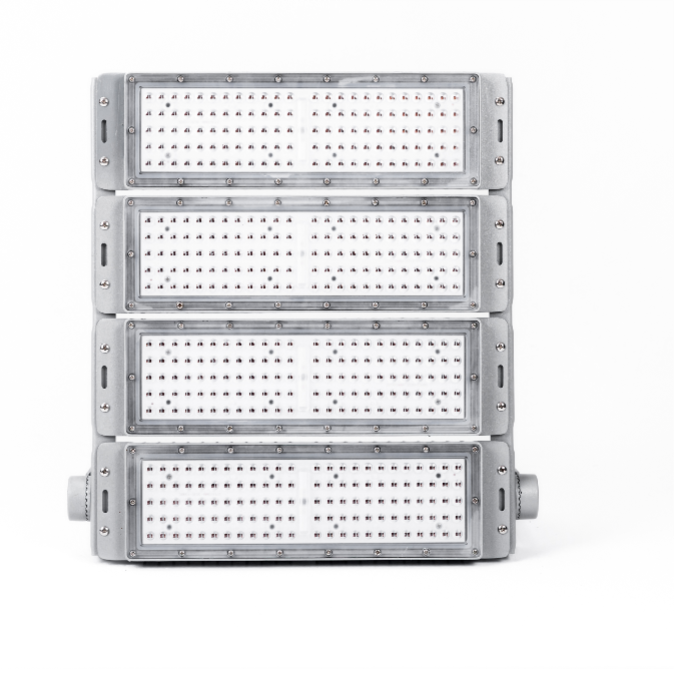

The Product Details

Technology Data
Model： MS-SL250W-FA01 MS-SL500W-FA02 MS-SL750W-FA03 MS-SL1000W-FA04 MS-SL1250W-FA05 MS-SL1500W-FA06 MS-SL2000W-FA07 MS-SL2500W-FA08
PoWer: 250W 500W 750W 1000W 1250w 1500W 2000w 2500W
Led Source: Philips-3030LEDs 288pcs Philips-3030LEDs 288*2pcs Philips-3030LEDs 288*3pcs Philips-3030LEDs 288*4pcs Philips-3030LEDs 288*5pcs Philips-3030LEDs 288*6pcs Philips-3030LEDs 288*8pcs Philips-3030LEDs 288*10pcs
Driver Brand Meanwell Inventronics/Mosun Meanwell Inventronics/Mosun Meanwell Inventronics/Mosun Meanwell Inventronics/Mosun Meanwell Inventronics/Mosun Meanwell Inventronics/Mosun Meanwell Inventronics/Mosun Meanwell Inventronics/Mosun
Input： AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
Body Color Black/Grey Black/Grey Black/Grey Black/Grey Black/Grey Black/Grey Black/Grey Black/Grey
Beam angle 30/60/90/140*70° 30/60/90/140*70° 30/60/90/140*70° 30/60/90/140*70° 30/60/90/140*70° 30/60/90/140*70° 30/60/90/140*70° 30/60/90/140*70°
Lumen efficiency： 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W
Power Factor: >0.95 >0.95 >0.95 >0.95 >0.95 >0.95 >0.95 >0.95
CCT： 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K
CRI ≥70/80Ra ≥70/80Ra ≥70/80Ra ≥70/80Ra ≥70/80Ra ≥70/80Ra ≥70/80Ra ≥70/80Ra
Protection Rating: IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Net Weight: 3.98kgs 7.24kgs 9.82kgs 13.84kgs 16.9kgs 20.92kgs 25.5kgs 30.1kgs
Warranty: 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years

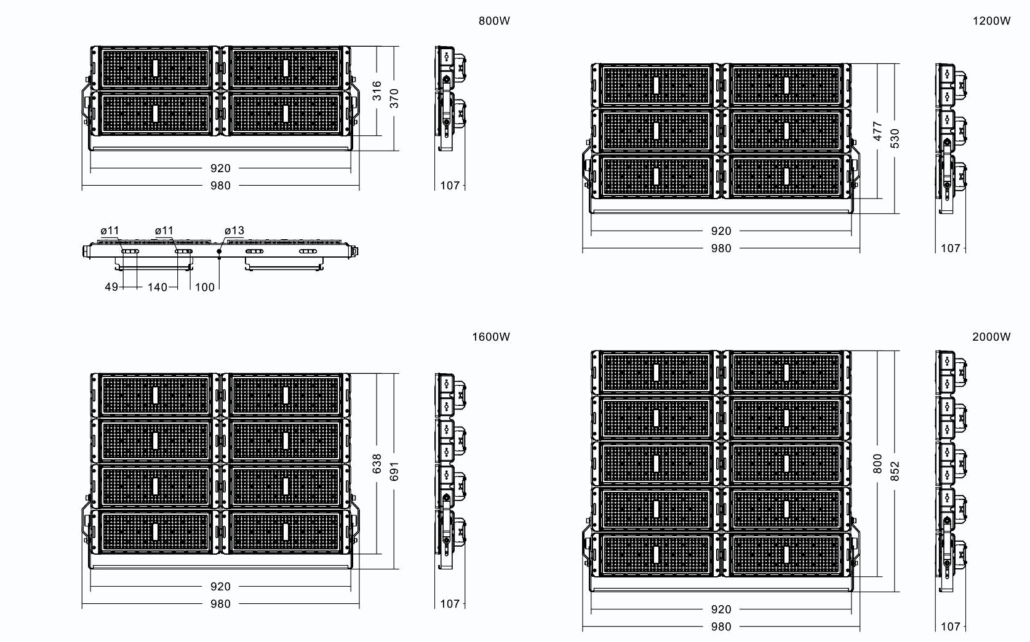

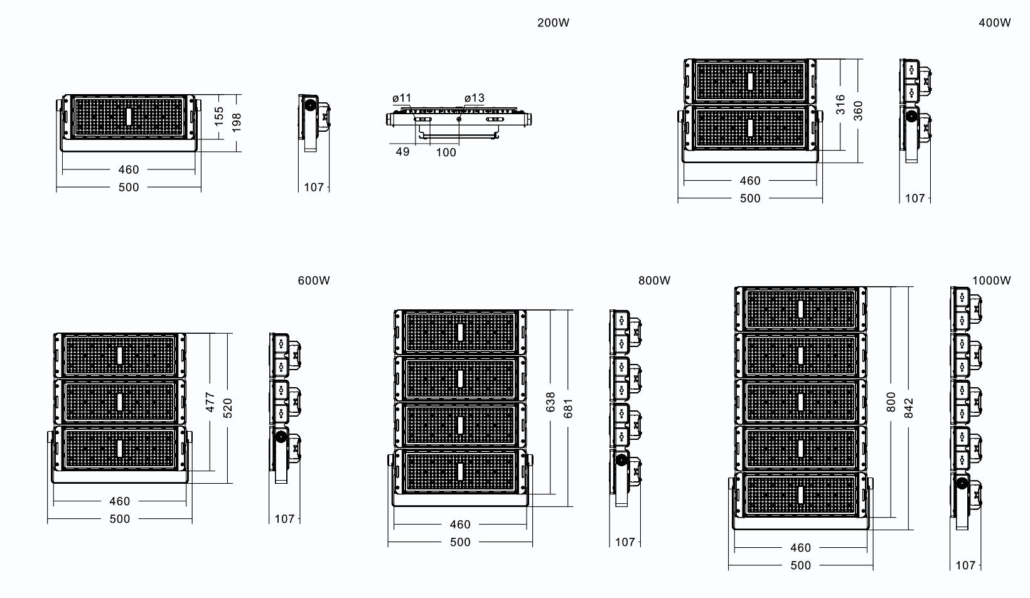

Dimension

Application Places

led floodlight outdoor lighting project

Package
Model： MS-SL250W-FA01 MS-SL500W-FA02 MS-SL750W-FA03 MS-SL1000W-FA04 MS-SL1250W-FA05 MS-SL1500W-FA06 MS-SL2000W-FA07 MS-SL2500W-FA08
Carton size 520*320*170mm 520*390*170mm 550*520*170mm 710*520*170mm 870*520*170mm 790*340*170mm 1000*560*170mm 1000*790*170mm
GW  4.45kgs 8.02kgs 10.74kgs 14.94kgs 18.32kgs 22.82kgs 28.36kgs 33.54kgs
CTN/PCS  1 1 1 1 1 1 1 1
Attention
  • Be sure to disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N”, yellow-green is GND.
  • Be sure wiring is closed and prevent leakage when installing.
  • The lamp cannot be used in violation of any fire regulations.
    fire-regulations

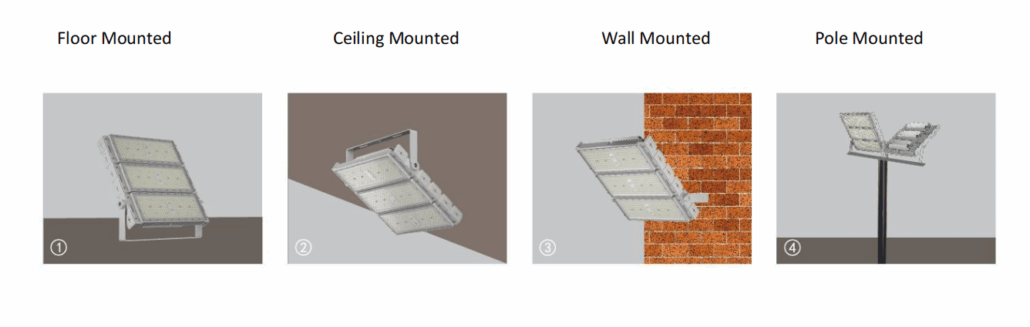

  • Installation and schematic.
Download Spec

FA Series Tunnel Lights-update
