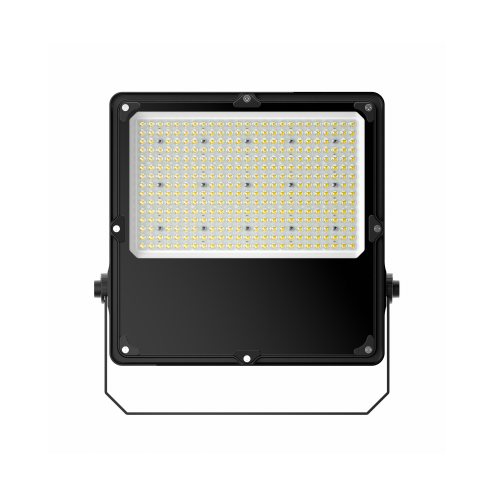

TK Series ultra slim LED flood light Product NO. :

          MS-YFL50W-TK01    MS-YFL100W-TK02

          MS-YFL150W-TK03   MS-YFL200W-TK04

                       MS-YFL300W-TK05

Premium Led Flood Light – Mosun TK series

Premium LED Flood Light – Mosun TK series

Features:

  • LED Source: Lumileds 2835 LED
  • Input Vol: AC100-277V,50/60hz
  • SPD:10KV or 20KV
  • CRI: ≥70/80Ra
  • IP Rate: IP66
  • Bracket Max rotatable angle: 180°
  • Body: Surface anti-corrosive treatment

Applications:

For outdoor sports fields, squares, parks, streets, parking lots, etc

The Product Details

Technology Data
Model： MS-YFL50W-TK01 MS-YFL100W-TK02 MS-YFL150W-TK03 MS-YFL200W-TK04 MS-YFL300W-TK05
Wattage: 40-60W 80-100W 120-150W 180-200W 250-300W
Led Source: Lumileds 2835 LED Lumileds 2835 LED Lumileds 2835 LED Lumileds 2835 LED Lumileds 2835 LED
Led Qnty: 96 PCS 192 PCS 288 PCS 360 PCS 576 PCS
Working voltage： AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
Driver brand options: Meanwell/Philips/ Inventronics /Sosen/Mosun Meanwell/Philips/ Inventronics /Sosen/Mosun Meanwell/Philips/ Inventronics /Sosen/Mosun Meanwell/Philips/ Inventronics /Sosen/Mosun Meanwell/Philips/ Inventronics /Sosen/Mosun
Optical lens options: 30/60/90°

120°/T2 / T3/T4

 30/60/90°

120°/T2 / T3/T4

 30/60/90°

120°/T2 / T3/T4

 30/60/90°

120°/T2 / T3/T4

 30/60/90°

120°/T2 / T3/T4
Lumen efficiency： 150-160lm/w 150-160lm/w 150-160lm/w 150-160lm/w 150-160lm/w
Luminous: 7500-8000lm 15000-16000lm 22000-23000lm 30000-32000lm 45000-47000lm
Power Factor: >0.95 >0.95 >0.95 >0.95 >0.95
Correlated Color Temperature： 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K
Color rendering index： ≥70Ra ≥70Ra ≥70Ra ≥70Ra ≥70Ra
SDCM: <5 <5 <5 <5 <5
IP Rating: IP66/IK08 IP66/IK08 IP66/IK08 IP66/IK08 IP66/IK08
Surge protection (optional) 10KV/20KV 10KV/20KV 10KV/20KV 10KV/20KV 10KV/20KV
PIR support support support support support
Housing Finish Polyester powder coating Polyester powder coating Polyester powder coating Polyester powder coating Polyester powder coating
Standard colour(s) Black Black Black Black Black
Materials Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate Aluminum Alloy+Tempered glass+Polycarbonate
Certificates CE/RoHS CE/RoHS CE/RoHS CE/RoHS CE/RoHS
Warranty 5 years 5 years 5 years 5 years 5 years
Dimension

Application Places

led floodlight outdoor lighting project

Package
Item MS-YFL50W-TK01 MS-YFL100W-TK02 MS-YFL150W-TK03 MS-YFL200W-TK04 MS-YFL300W-TK05
Package Qty 10 PCS 1 PCS 1 PCS 1 PCS 1 PCS
GW 21 KG 3.2 KG 3.85 KG 4.9 KG 7.8 KG
Cartons(mm) 520*330*430MM 340*330*100MM 380*320*100MM 390*370*100MM 450*420*100MM
Attention
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is L ,blue is N, yellow-green is GND
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.
    fire-regulations
  • Installation and schematic.
Download Spec

Related Products

All 11 /About US 0 /Dual row modular stadium light 0 /LED Accessories 0 /LED Driver 0 /led flood light a 7 /LED Flood Light L 1 /Led Flood Light Series 0 /LED Flood Light T series 2 /Led Flood Light TK 1 /LED Garden Light MS-GSL08 0 /LED Shoebox Street Light 0 /LED Solar Garden Light 0 /Led Stadium Floodlight A 0 /Led Stadium Light A 0 /Led Stadium Light B 0 /Led Stadium Light Series 0 /Led Street Light 160lm/w F 0 /Led Street Light A 0 /Led Street Light B 0 /Led Street Light C 0 /Led Street Light HK 0 /LED Street Light J 0 /Led Street Light L 0 /Led Street Light P 0 /LED Street Light R 0 /Led Street Light Series 0 /Led Tunnel Light A 0 /Led Tunnel Light B 0 /LED Tunnel Light F 0 /Led Tunnel Light Series 0 /Linear High Bay light 0 /Mosun G series LED Floodlight 0 /MS-LTU-B 0 /Photocell sensor 0 /Solar LED Light Series 0 /Surge protection Devices 0 /Tower Lamps Led High Bay 0 /UFO High Bay Light Bracket 0

TK Series ultra slim LED flood light

Led Flood Light T series – asymmetrical lenses

flood-light

Led Flood Light T 100°

Led Flood Light F

L series Floodlight

Ultra slim food light

Asymmetrical LED flood light 80W 100W 150W 200W

High wattage led Floodlight

300W Asymmetrica lenses ULtra Slim LED Floodlight

project reflector

Ultra thin floodlight with lenses

200w ultra thin led flood light

200W ultra thin Led Flood Light

150w ultra led flood light

150w ultra thin led flood light

100w ultra thin led flood light

100w ultra thin led flood light

60w ultra thin led flood light

60w ultra thin Led Flood Light

Have suggestions and questions?
Leave us a message


12345

Led Roadway Light Product NO. :

MS-XCLD50W-H01    MS-XCLD100W-H02

MS-XCLD150W-H03   MS-XCLD200W-H04

MS-XCLD250W-H05    MS-XCLD300W-H06

MS-XCLD350W-H07

Led Roadway Light

Features:

  • Led Roadway Light
  • High lumen: 120-130lm/w
  • Slim, silver classic appearance
  • Chip: Philips 3030 LED
  • IP rating: IP65
  • Modular structure design, 50w to 350w option
  • Efficient heat cooling
  • Warm and cold color temperature are available
  • CE RoHS Approved
  • Beam Angle:  75*140°
  • Warranty: 5 years

Applications:

Branch city streets and roads, Highway, Pavements, Squares and Schools, Parks, Yards

The Product Details

Technology Data
Model： MS-XCLD50W-H01 MS-XCLD100W-H02 MS-XCLD150W-H03 MS-XCLD200W-H04 MS-XCLD250W-H05 MS-XCLD300W-H06 MS-XCLD350W-H07
Power: 50W 100W 150W 200W 250W 300W 350W
Led Qty: 56PCS 112PCS 168PCS 224PCS 280PCS 336PCS 392PCS
Weight: 4KG 5.2KG 6.5KG 7.5KG 9KG 10.5KG 11.5KG
Led Source: Philips-3030LED
Working voltage： AC85-265V
Beam angle: 75*140°
Lumen： 120-130lm/W
Power Factor: ≥0.95
Correlated Color Temperature： 3000-6500k
Color rendering index： >80Ra
IP Rating: IP65
Dimension

Led Roadway Light Dimesion

Application Places

Mosun Led Roadway Light widely used in all kinds of road lighting: expressway, Trunk Road and Welcome Road、main roads to government agencies and large public buildings 、road of downtown and Business center secondary main road, branch, residential roads, and sidewalk, also can be used in general building, square, goods yard, and scenic spot.Can be installed on the lamp-post of 4m-6m.

Package
Item MS-XCLD50W-H01 MS-XCLD100W-H02 MS-XCLD150W-H03 MS-XCLD200W-H04 MS-XCLD250W-H05 MS-XCLD300W-H06 MS-XCLD350W-H07
Package Qty 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs
GW 5.3KG 6.8KG 8.4KG 9.7KG 11.5KG 13.3KG 14KG
Inner Box Size(mm) 500*380*140 600*380*140 700*380*140 780*380*140 880*380*140 980*380*140 1008*380*140

Mosun led street light packing

Attention
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC85~265V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N”, yellow-green is GND.
  • Be sure wiring is closed and prevent leakage when installing.
  • The lamp cannot be used in violation of any fire regulations.
    fire-regulations
  • Installation and schematic.
    Mosun led street light
Download Spec

icon_pdf

Led Roadway Light Pdf files

Related Products

Solar LED Street Light-YZ

Mosun-JP-series-Street-Light

LED Street Light JP Series

LED Garden Light

120 lm/w street light

LED street light J

led street Light s

Led Street Light S

urban street light

LED Street Light HK Series

economical led street light

Led Street Light P

Shoebox street Light

LED Shoebox Street Light

Led Street Light R

L led street light

L-Series Led Street Light

Public street light

F Series Led Street Light

mosun c series street light

C Series Led Street Light

A led street light from Mosun

A series Led Street Light

Module led street light

B Series Modular Led Street Light

Have suggestions and questions?
Leave us a message


1234567891011

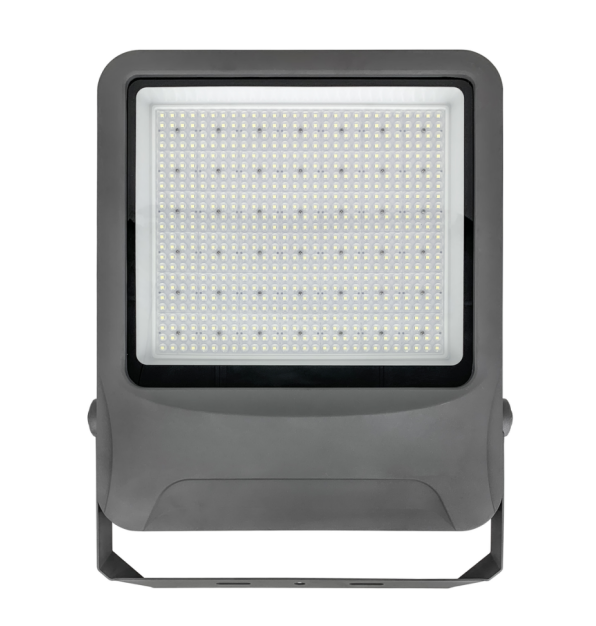

L series LED Flood Light  Product NO. :

MS-YFL30W-T01                           MS-YFL150W-T04

MS-YFL50W-T02                           MS-YFL200W-T05

MS-YFL100W-T03                         MS-YFL250W-T05

MS-YFL300W-T06

Premium Led Flood Light – Mosun T series

Premium LED Flood Light – Mosun T series

Features:

  • High lumen: 130lm/w
  • Chip: Philips 3030 LED
  • IP rating: IP66
  • Body temperature: less than 65 degrees
  • Energy saving system, saving 80% of energy
  • Ambient temperature:-35°C-  55° degree
  • Good Color Rendering
  • Warm and cold color temperatures are available
  • Good heat sink design
  • CE RoHS Approved
  • Beam Angle: 100°
  • Warranty: 5 years

Applications:

For outdoor sports fields, squares, parks, streets, parking lots, etc

The Product Details

Technology Data
Model： MS-YFL30W-T01 MS-YFL50W-T02 MS-YFL100W-T03 MS-YFL150W-T04 MS-YFL200W-T05 MS-YFL250W-T06 MS-YFL250W-T07
Power: 30W 50W 100W 150W 200W  250W 300W
Led Source: Philips-3030LEDs 36pcs 7Philips-3030LEDs 60pcs Philips-3030LEDs 120pcs Philips-3030LEDs 180pcs Philips-3030LEDs 240pcs Philips-3030LEDs 300pcs Philips-3030LEDs 360pcs
Driver Brand Meanwell ,Inventronics/DONE/Mosun Meanwell ,Inventronics/DONE/Mosun Meanwell ,Inventronics/DONE/Mosun Meanwell ,Inventronics/DONE/Mosun Meanwell ,Inventronics/DONE/Mosun Meanwell ,Inventronics/DONE/Mosun Meanwell ,Inventronics/DONE/Mosun
Input： AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ AC100-277V,50/60HZ
Body Color Black/Grey Black/Grey Black/Grey Black/Grey Black/Grey Black/Grey Black/Grey
Optical Lenses 100° 100° 100° 100° 100° 100° 100°
Lumen： 3900-4200LM 6500-7000LM 13000-14000LM 19500-21000LM 26000-28000LM 32500-35000LM 39000-42000LM
Power Factor: >0.95 >0.95 >0.95 >0.95 >0.95 >0.95 >0.95
Correlated Color Temperature： 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K
Color rendering index： ≥70Ra ≥70Ra ≥70Ra ≥70Ra ≥70Ra ≥70Ra ≥70Ra
Protection Rating: IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08 IP66&IK08
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Net Weight: 1.10kgs 1.70kgs 3.4kgs 4.90kgs 5.5kgs 5.9kgs 9.7kgs
Dimension

flood-light-dimensions

flood-light-dimensions

Application Places

led floodlight outdoor lighting project

Package
Model： MS-YFL30W-T01 MS-YFL50W-T02 MS-YFL100W-T03 MS-YFL150W-T04 MS-YFL200W-T05 MS-YFL250W-T06 MS-YFL250W-T07
Carton size 522*365*315mm 465*311*315mm 596*292*60mm 440*420*115mm 490*420*115mm 540*420*115mm 580*570*115mm
Inner box 254*175*60mm 296*226*60mm 372*292*60mm / / / /
Light body weight 25.2kgs 18.4kgs 29.5kgs 5.2kgs 5.7kgs 6.6kgs 10.4kgs
CTN/PCS 20 10 10 1 1 1 1
Attention
  • Be sure to disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N”, yellow-green is GND.
  • Be sure wiring is closed and prevent leakage when installing.
  • The lamp cannot be used in violation of any fire regulations.
    fire-regulations
  • Installation and schematic.
